Digital thickness meter
Titolo
- Descrizione
- Caratteristiche tecniche

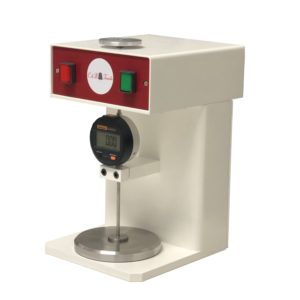

Digital automatic thickness meter.
It functions in a very easy way: a button highs and lows the plate in order to exert a constant pressure and without the possible variations given by the operator.
It is a very easy to be carried table tool. It doesn’t require calibration. It is provided with a weight to put upon a rod in order to change the pressure exerted on the sample.
Possibility of having plates of different dimension according to the need of the client.
| Height mm | 260 |
| Width mm | 160 |
| Depth mm | 170 |
| Weight Kg | 10 |
- Upper plate surface
- 2500 mm2
- Lower plate diameter
- 100 mm
- Exerted pressure
- Changeable according to the normative
- Plates opening
- 12 mm
- Depth of measurement
- > 100 mm
- Power supply
- 230 V 50 Hz
- Power
- 30 W
